Carbon Nanodots and their Applications in Food Science and Technology

Source of cover picture: Banger, Anjali & Gautam, Sakshi & Jadoun, Sapana & Jangid, Nirmala & Srivastava, Anamika & Pulidindi, Indra & Dwivedi, Jaya & Srivastava, Manish. (2023). Synthetic Methods and Applications of Carbon Nanodots. Catalysts. 13. 858. 10.3390/catal13050858.

Introduction

Carbon nanodots (CNDs) are a novel class of carbon-based nanomaterials that have garnered significant attention in various scientific fields due to their unique physicochemical properties. These materials are typically spherical, less than 10 nm in diameter, and exhibit remarkable optical properties such as strong fluorescence, excellent biocompatibility, and low toxicity. These attributes make CNDs highly promising for applications in food science and technology, particularly in food safety, quality control, packaging, and functional food development. This article explores the synthesis, properties, and diverse applications of CNDs in the food industry.

Synthesis of Carbon Nanodots

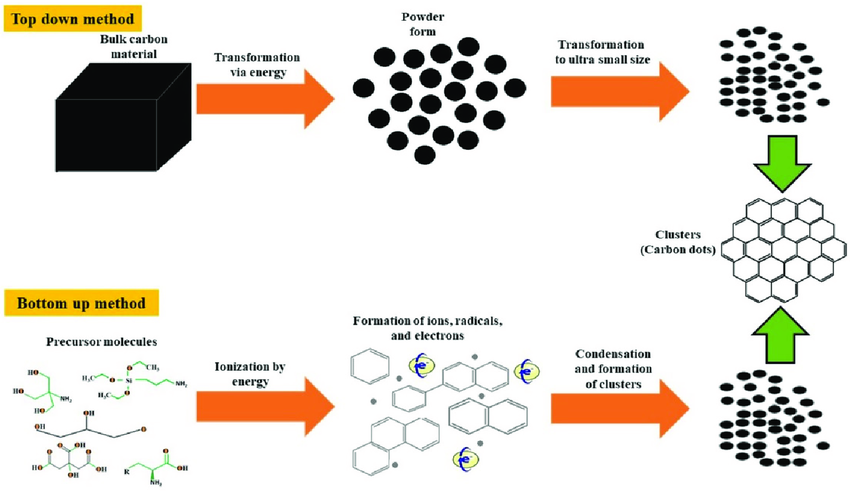

CNDs can be synthesized using various top-down and bottom-up approaches:

Top-Down Methods: These involve breaking down larger carbon structures, such as carbon nanotubes or graphite, into nanoscale fragments. Techniques include laser ablation, electrochemical oxidation, and arc discharge.
Bottom-Up Methods: These involve assembling smaller carbon precursors into nanodots through hydrothermal or solvothermal synthesis, microwave-assisted synthesis, and green synthesis using natural precursors such as fruit extracts and plant-based materials.

Among these methods, green synthesis is gaining popularity due to its environmentally friendly approach, avoiding the use of harsh chemicals and reducing potential toxicity.

Properties of Carbon Nanodots

The physicochemical properties of CNDs make them ideal for food science applications:

Fluorescence: CNDs exhibit strong, tunable fluorescence, making them useful as sensors and imaging agents.
Water Dispersibility: High solubility in aqueous environments enhances their applicability in food matrices.
Biocompatibility and Low Toxicity: Unlike some other nanomaterials, CNDs are generally considered safe for biological and food-related applications.
Antioxidant and Antimicrobial Properties: CNDs can act as antioxidants and inhibit microbial growth, making them valuable for food preservation.

Applications of Carbon Nanodots in Food Science and Technology

1. Food Safety and Quality Control

One of the most significant applications of CNDs in food science is their use in detecting foodborne pathogens, contaminants, and adulterants.

Fluorescent Sensors: CNDs serve as biosensors for detecting harmful substances such as heavy metals (e.g., lead, cadmium), pesticides, and antibiotics in food samples.
Pathogen Detection: Functionalized CNDs can bind to bacterial cells like E. coli and Salmonella, enabling rapid and sensitive detection through fluorescence quenching or enhancement mechanisms.
Food Freshness Indicators: CND-based smart sensors integrated into packaging can monitor spoilage by detecting gases such as ammonia released during food degradation.

2. Food Packaging

The incorporation of CNDs into food packaging materials can improve shelf life, enhance food safety, and provide real-time quality monitoring.

Antimicrobial Packaging: CNDs with antibacterial properties can be embedded into biopolymer films to inhibit microbial growth and prevent food spoilage.
Intelligent Packaging: CND-based colorimetric indicators can change color in response to temperature fluctuations or contamination, helping consumers assess food quality.
Oxygen Scavengers: CNDs can be used to reduce oxidative degradation of packaged foods by scavenging oxygen molecules.

3. Food Additives and Nutraceuticals

CNDs have potential applications as functional food ingredients due to their bioactive properties.

Antioxidant Properties: CNDs derived from natural sources such as fruit extracts can be incorporated into foods to enhance their antioxidant capacity, helping to prevent oxidative stress-related diseases.
Drug and Nutrient Delivery: CNDs can act as carriers for bioactive compounds like vitamins, polyphenols, and probiotics, improving their bioavailability and controlled release in the human body.
Colorants and Fluorescent Markers: Due to their strong fluorescence, CNDs can be used as natural food colorants or quality markers for ensuring product authenticity and preventing counterfeiting.

4. Waste Utilization in the Food Industry

Green synthesis of CNDs from food waste (such as fruit peels, coffee grounds, and vegetable residues) aligns with sustainable practices by converting agricultural and food processing waste into high-value nanomaterials. This contributes to waste reduction and promotes circular economy principles in the food industry.

Challenges and Future Perspectives

Despite the promising applications of CNDs in food science, some challenges remain:

Regulatory Approval: The safety and toxicity of CNDs must be thoroughly evaluated to obtain regulatory approval for food applications.
Scalability of Production: Large-scale, cost-effective synthesis of high-purity CNDs is essential for commercial applications.
Long-Term Stability: The stability of CNDs in food matrices and their interactions with other food components need further investigation.
Consumer Acceptance: Public perception and acceptance of nanotechnology in food products require transparent communication and risk assessments.

Conclusion

Carbon nanodots hold immense potential for revolutionizing the food industry by enhancing food safety, improving packaging, and contributing to the development of functional foods. Their unique properties, such as fluorescence, biocompatibility, and antimicrobial activity, make them versatile nanomaterials for diverse applications. While challenges remain in terms of regulatory approval and large-scale production, ongoing research and technological advancements are likely to drive the widespread adoption of CNDs in food science and technology. Embracing these nanomaterials could lead to safer, healthier, and more sustainable food systems in the future.

References

1. Baker, S. N., & Baker, G. A. (2010). Luminescent carbon nanodots: Emergent nanolights. Angewandte Chemie International Edition, 49(38), 6726-6744.

2. Zhu, S., Song, Y., Zhao, X., Shao, J., Zhang, J., & Yang, B. (2015). The photoluminescence mechanism in carbon dots (graphene quantum dots, carbon nanodots, and polymer dots): Current state and future perspective. Nano Research, 8(2), 355-381.

3. Wang, Y., Hu, A. (2014). Carbon quantum dots: Synthesis, properties and applications. Journal of Materials Chemistry C, 2(34), 6921-6939.

4. Das, R. K., Brar, S. K., Verma, M., & Surampalli, R. Y. (2019). Biotechnological applications of carbon nanodots in food and agriculture. Trends in Food Science & Technology, 86, 25-36.

5. Sharma, A., Gadly, T., Gupta, A., Ballal, A., Ghosh, S. K., & Kumbhakar, M. (2017). Origin of excitation dependent fluorescence in carbon nanodots. The Journal of Physical Chemistry Letters, 8(15), 3647-3653.

6. Tian, Z., Zhang, X., Li, D., Zhou, D., Jing, P., Shen, D., … & Qu, S. (2017). Full-color fluorescent carbon dots with a surface-state-controlled luminescence mechanism. Advanced Materials, 29(10), 1606537.

7. Raliya, R., Tarafdar, J. C., & Biswas, P. (2016). Enhancing the mobilization of micronutrients in the rhizosphere using biosynthesized carbon-based nanocarriers. Environmental Science: Nano, 3(4), 602-611.

8. Li, H., Kang, Z., Liu, Y., & Lee, S. T. (2012). Carbon nanodots: Synthesis, properties and applications. Journal of Materials Chemistry, 22(46), 24230-24253.

9. Zhang, J., Yu, S. H. (2016). Carbon dots: Large-scale synthesis, sensing and bioimaging. Materials Today, 19(7), 382-393.

10. Mohan, N., Chen, C. S., Hsieh, H. H., Wu, Y. C., & Chang, H. C. (2010). In vivo imaging and toxicity assessments of fluorescent carbon nanodots. ACS Nano, 4(12), 7477-7484.
